Hartridge IFT-U Standalone Ultrasonic Tank

Our IFT-U Standalone Ultrasonic Tank is small, compact and cost-effective. It cleans up to four injectors at a time and is available as a standalone unit.

Drawing heavily on Hartridge’s extensive injector and test bench expertise, the IFT-U is the perfect companion to our Sabre range of platforms. It cleans both injectors and injector components thoroughly and efficiently.

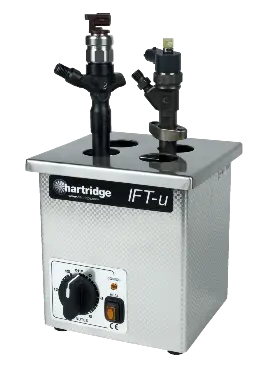

IFT-u tank transaparent
IFT Ultrasonic tank over white background

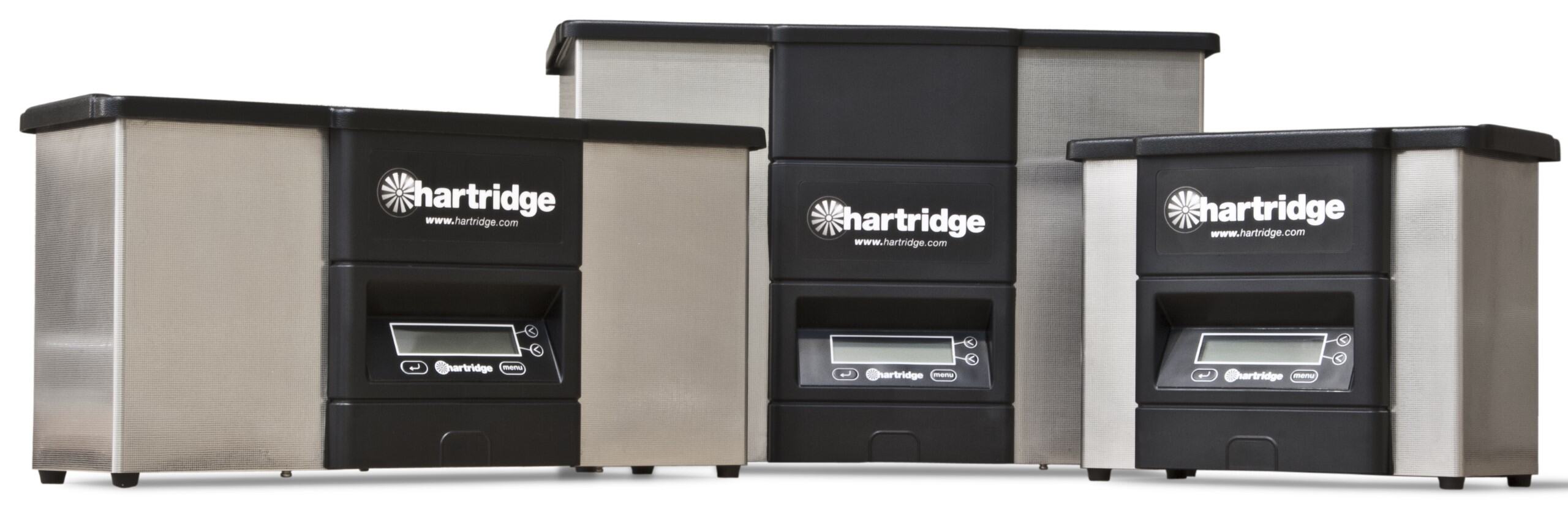

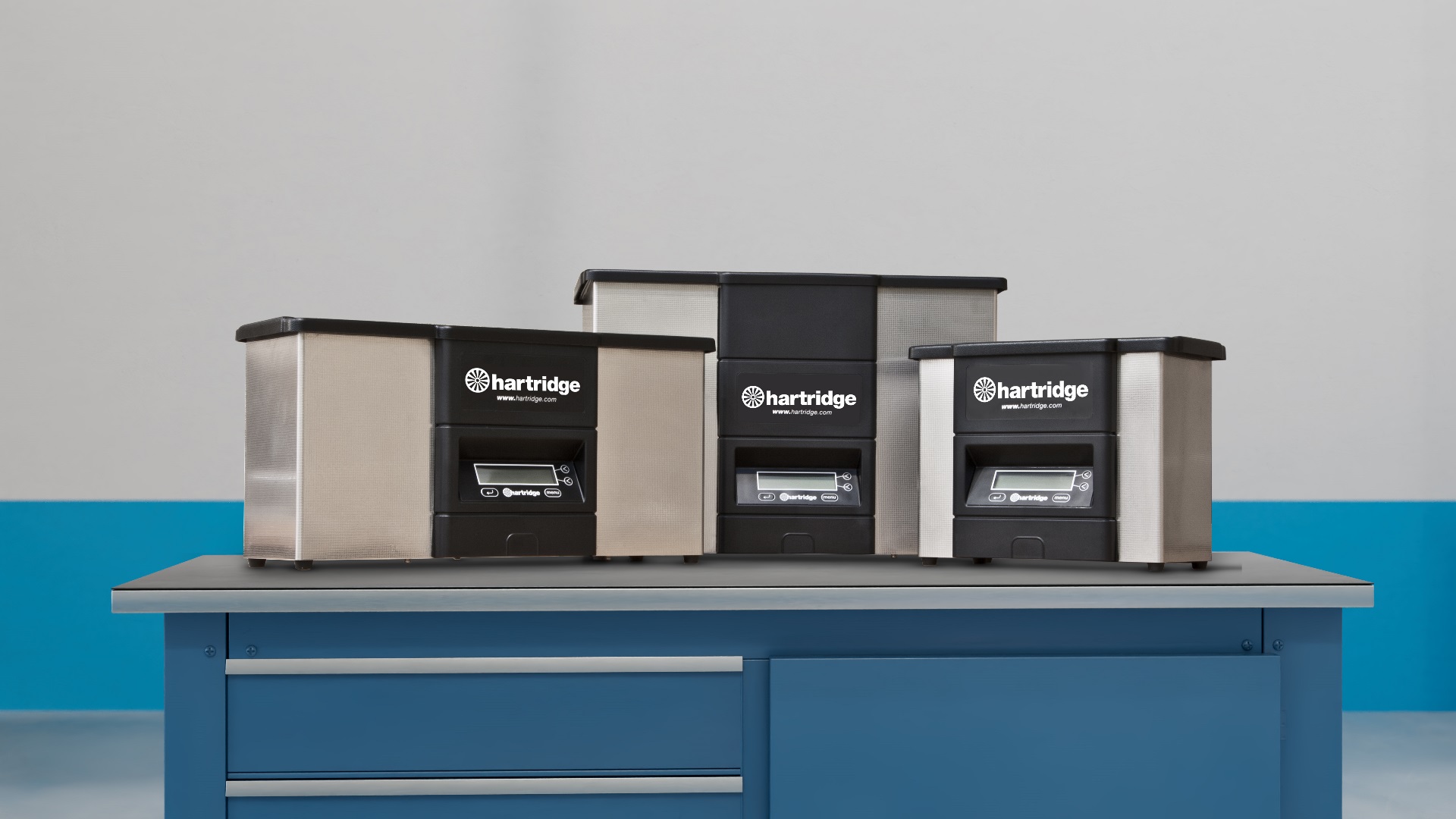

HM1030 – HM1033 Microdiesel Ultrasonic Tanks

In ultrasonic cleaning, high-intensity sound waves are introduced to the cleaning fluid to produce bubbles which form around components and remove dirt from their surface. To use the machine, the parts needing to be cleaned are placed in a wire container which is inserted into the tank, full of cleaning fluid.

The performance of our tanks means that you don’t need to disassemble components before cleaning. They offer programmable settings for temperature, power and time, and are perfect for cleaning injector nozzles.

HM1009 Ultrarinse Tank

Once components have been cleaned ultrasonically, they must be rinsed in another solution to get rid of any loose particles.

That’s where our HM1009 Ultrarinse Tank comes in. Highly affordable in both investment and running costs, it also cleans to a class (0) cleanliness specification, which is often mandated by OE manufacturers.

The HM1009 works equally well on a standard workbench or as a standalone unit.

HM1009 Ultrarinse tank over white background

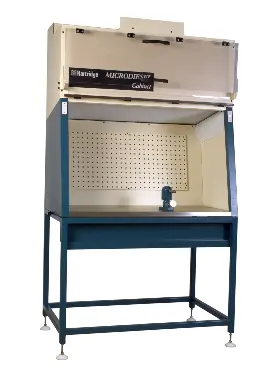

HM1000 Microdiesel tank over white background

HM1000 Microdiesel Cabinet

Our HM1000 Microdiesel Cabinet is a clean air cabinet. It’s been designed specifically for diesel fuel injection equipment, and enables your workshop to set up and maintain an environment ensuring the highest possible standards of cleanliness.
