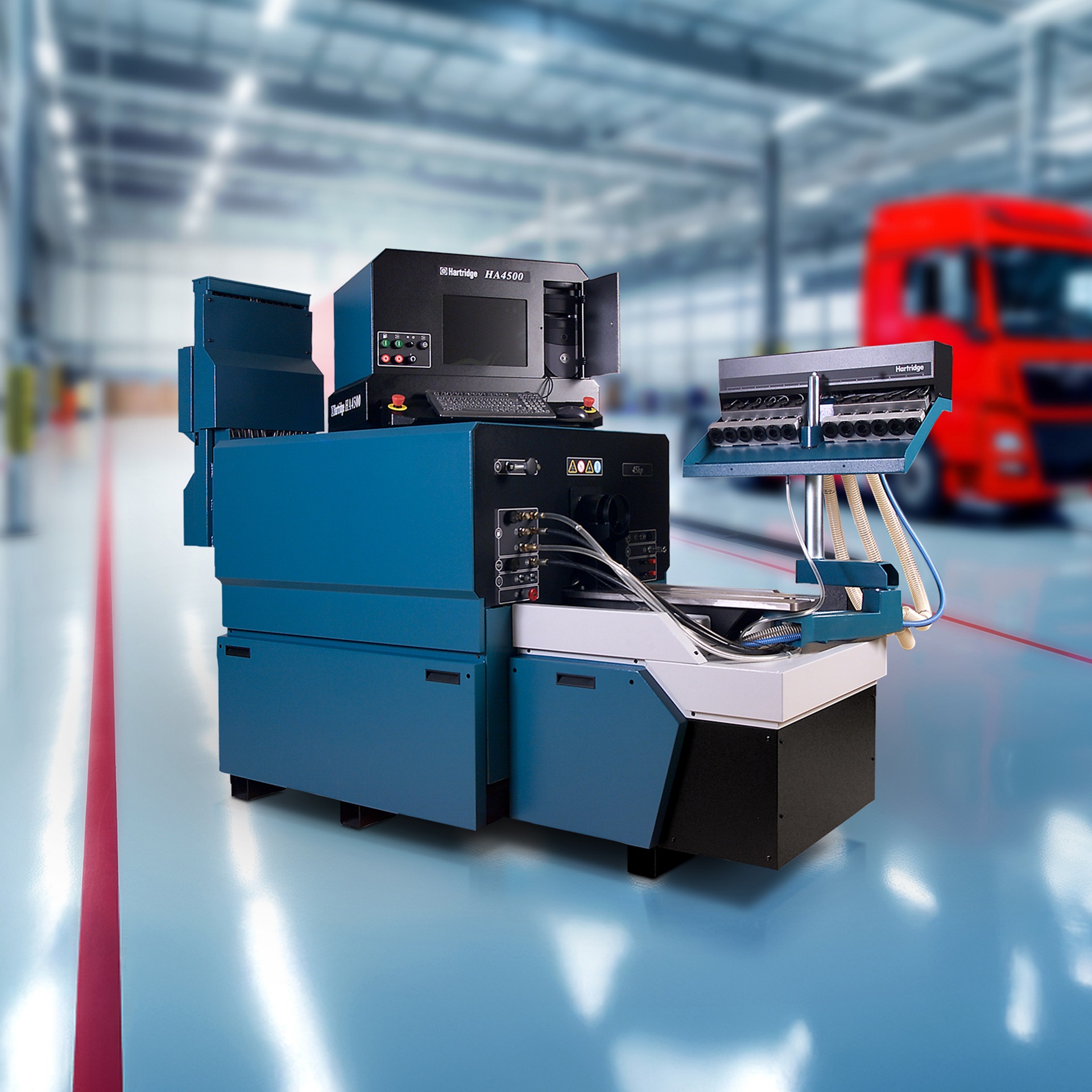

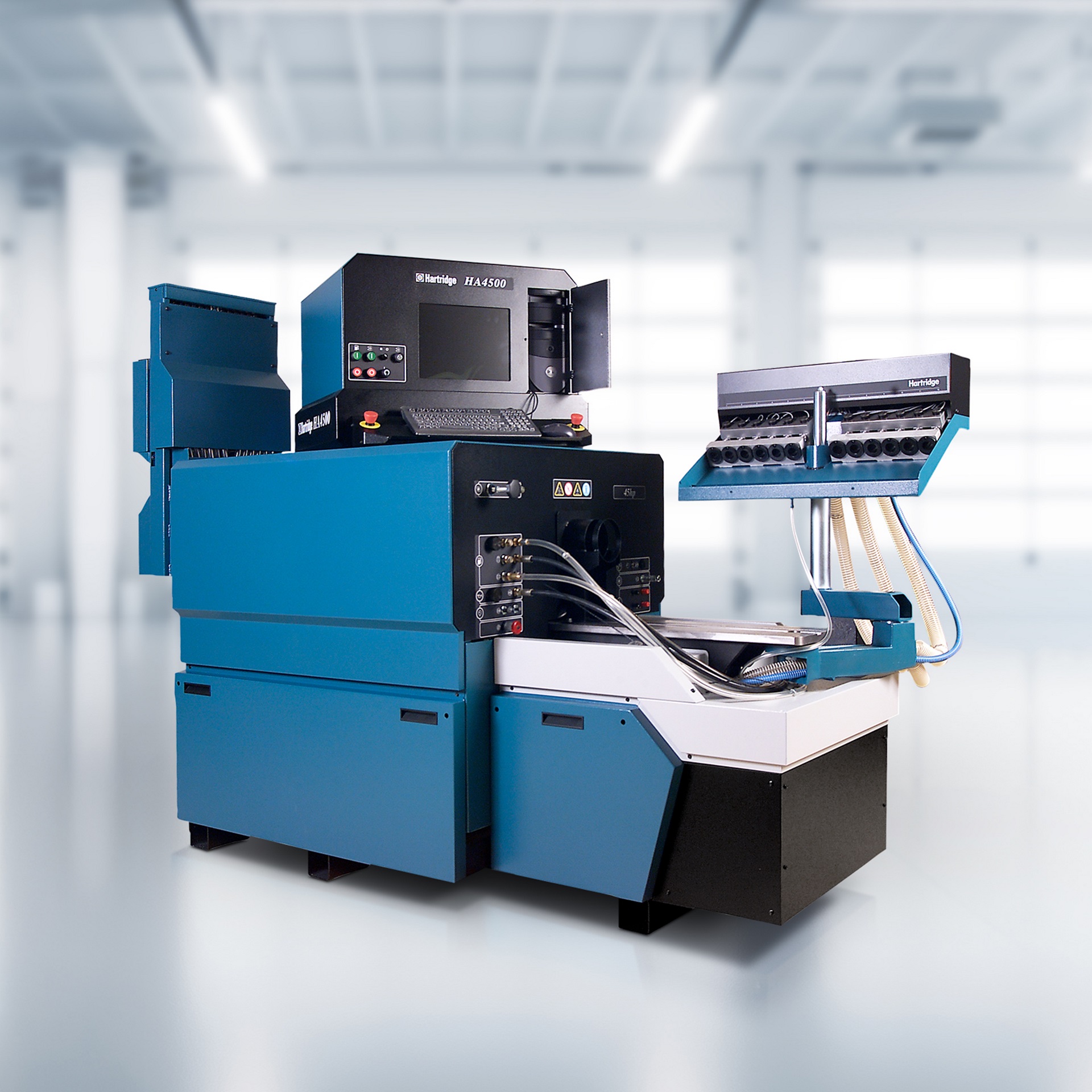

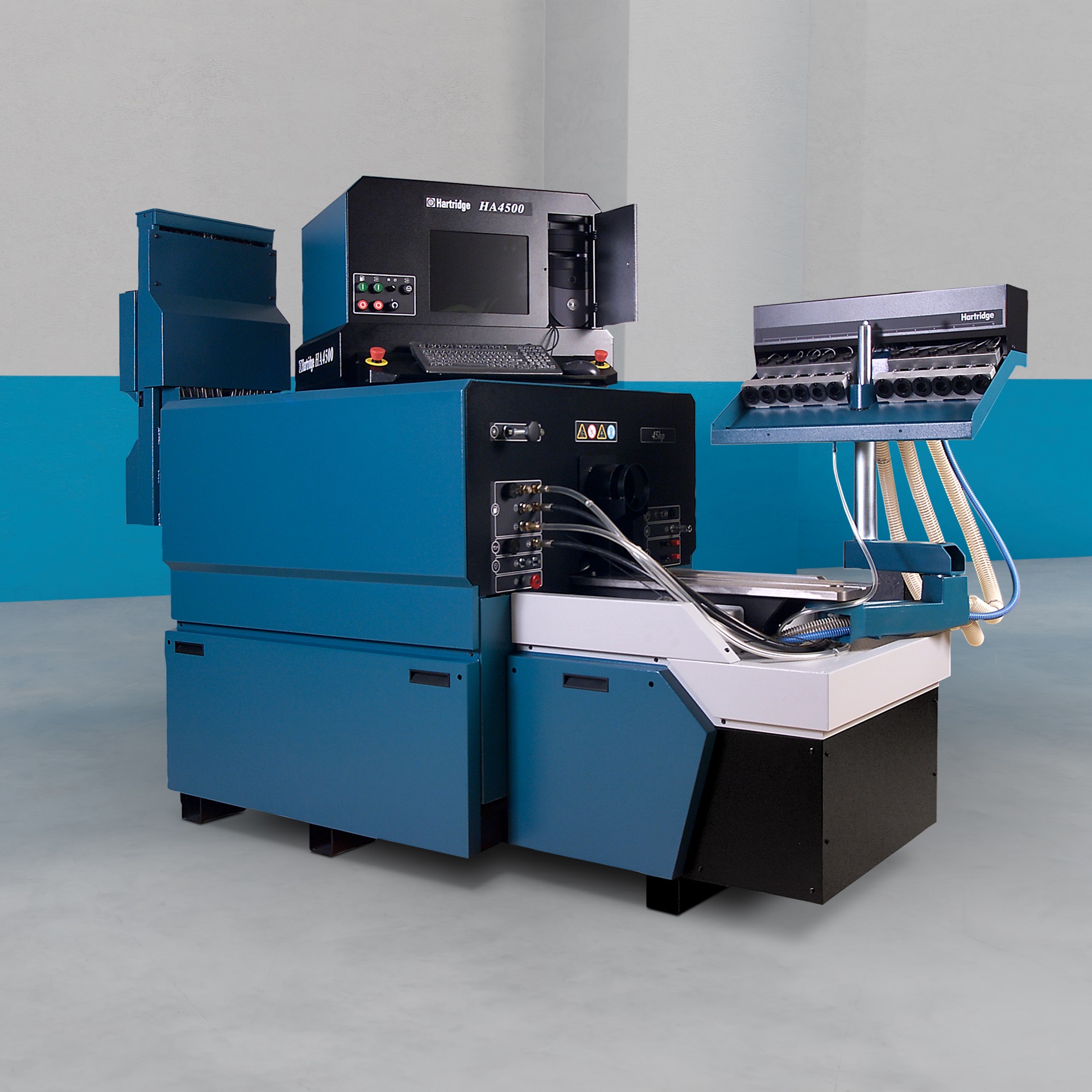

HA4500 Test Stand

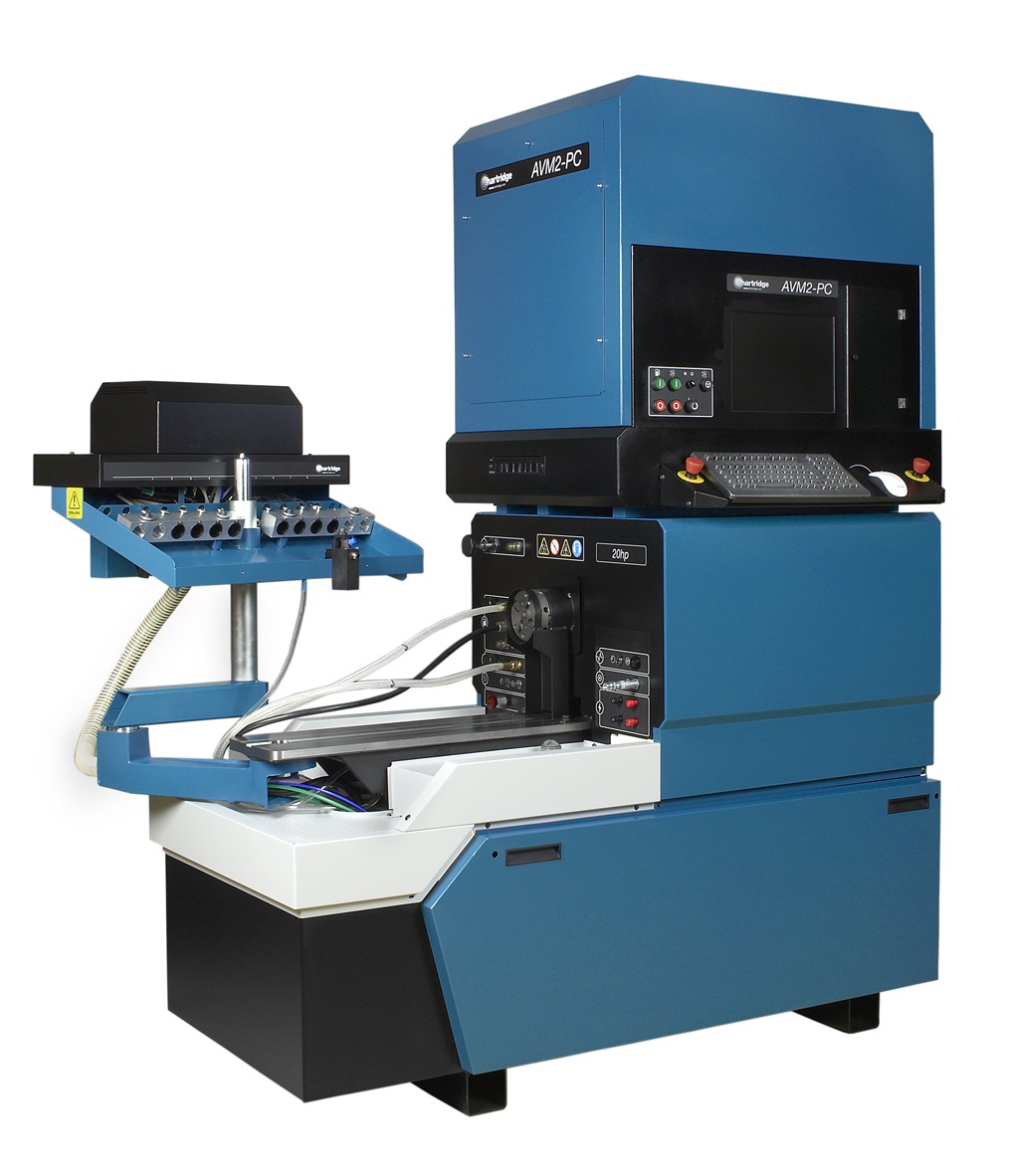

Just like the AVM2-PC, the DNA of the HA4500 is based on technology developed and improved over decades, making it highly reliable, accurate and dependable. We have deployed the HA4500 all over the world, providing specialist solutions for customers across a wide range of sectors, such as Maritime, Agriculture, Military, Rail and Off-highway Industrial. It is a high-specification and extremely robust base platform upon which a very wide range of tailored hardware and software applications can be built.
Whether a highly elusive failure mode needs to be zoomed in on or a specific test parameter requires evaluation, with nearly 100 years of experience engineering diesel test solutions we can develop it for you on the HA4500.
Key Features
- High torque 35 kW DC drive motor
- Speed range 30-3000 RPM
- Direct drive system – DC motor is directly coupled to the flywheel
- Electronic feedback system providing negligible speed drop between full load and no load positions of the injection pump
- 12 line electronic fuel measuring system (spm) or open top graduate metering
- Pump advance and rack measurement displayed digitally
- Turbo boost pressure and phasing displayed digitally
- Versatile test platform for multi cylinder or single cylinder applications
Benefits
- Strong construction and proven easy-to-use ergonomic design
- Compact size for easy installation
- Able to test a wide range of injection pumps from small automotive up to large PE12ZWM multi-cylinder pumps and 22 mm plunger diameter single cylinder pumps with additional single cylinder cambox mounted on bed plate
- Worldwide spares availability and customer support
- Enhanced accuracy of pump testing coupled with efficient operation
- Significant increase in speed of test with electronic metering option
Have a question or need any more information? Contact our team to provide the solutions you need.
